उत्पाद विवरण:
|
| पैनल प्रकार: | CSTN-एलसीडी | पैनल का आकार: | 10.4 इंच |
|---|---|---|---|
| संकल्प: | 640 × 480 | सतह: | चमक विरोधी |
| इसके विपरीत अनुपात: | 25: 1 (टाइप।) | प्रदर्शन रंग: | रंग |
| हाई लाइट: | industrial touch screen display,industrial lcd screen |
||

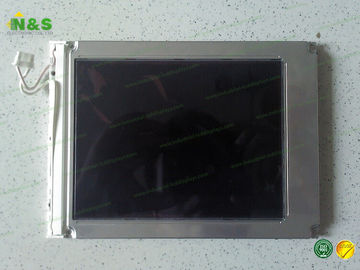

KCS6448JSTT-X6 10.4 inch Normally Black 640×480 TFT LCD MODULEOutline 242.5×179×7.5 mm Surface Antiglare
KCS6448JSTT-X6 Basic Information
| Panel Model | KCS6448JSTT-X6 |
| Panel Brand | Kyocera |
| Descrition | CSTN-LCD ,10.4 inch, 640×480 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 60 °C |
KCS6448JSTT-X6 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 400g (Typ.) |
| Surface | Antiglare |
| Active Area | 211.18×158.38 mm (H×V) |
| Bezel Area | 216.2×163.4 mm (H×V) |
| Outline Dimension | 242.5×179 mm (H×V) |
| Outline Depth | 7.0±0.5 mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
KCS6448JSTT-X6 Optical Features
| Display Mode | STN, Normally Black, Transmissive |
| Brightness | 100 cd/m² (Typ.) |
| Contrast Ratio | 25 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 160/80 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/30/30 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.300; Wy:0.330 |
| Sunlight Readable | N |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
