उत्पाद विवरण:
|
| पैनल का आकार: | 15.0 इंच | संकल्प: | 2048 × 1536 |
|---|---|---|---|
| सक्रिय क्षेत्र: | 304.1 × 228.1 मिमी | इसके विपरीत अनुपात: | 400: 1 (टाइप।) |
| प्रदर्शन रंग: | 262 के (6-बिट) | इनपुट वोल्टेज: | 3.3V (टाइप।) |
| हाई लाइट: | industrial touch screen display,industrial lcd screen |
||

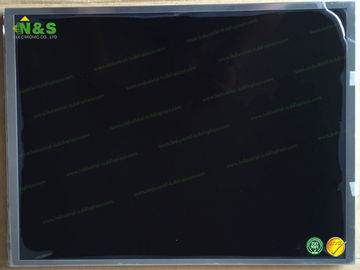

Normally Black IAQX10M 15.0 inch high resolution 2048×1536 Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)
IAQX10M Basic Information
| Panel Model | IAQX10M |
| Panel Brand | IDTech |
| Descrition | a-Si TFT-LCD ,15.0 inch, 2048×1536 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
IAQX10M Mechanical Features
| Dot Resolution | 2048(RGB)×1536 (QXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 171 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0495×0.1485 mm (H×V) |
| Pixel Pitch | 0.1485×0.1485 mm (H×V) |
| Weight | 1.06/1.10Kgs (Typ./Max.) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 307.8×231.6 mm (H×V) |
| Outline Dimension | 326×244.5 mm (H×V) |
| Outline Depth | 13.0/13.3 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
IAQX10M Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| Sunlight Readable | N |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD055BHW3-D00 | HannStar | 5.5" | 720×1280 |
| H546TAN01.4 | AUO | 5.5" | 720×1280 |
| LSC480AN02 | Samsung | 48" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LC550DUK-SGK2 | LG Display | 55" | 1920×1080 |
| LH400WV8-SH01 | LG Display | 4.0" | 480×800 |
| TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
| CLAN089WA02 XN | CPT | 8.9" | 800×1280 |
| LSF650FJ02 | Samsung | 65" | 3840×2160 |
| ST5461B05-2 | CSOT | 55" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
