उत्पाद विवरण:
|
| पैनल का आकार: | 12.1 इंच | संकल्प: | 1024 × 768 |
|---|---|---|---|
| बाह्य रेखा: | 270 × 199 × 7 मिमी | इसके विपरीत अनुपात: | 450: 1 (टाइप।) |
| आवृत्ति: | 60 हर्ट्ज | ||
| हाई लाइट: | industrial lcd screen,industrial lcd panel |
||

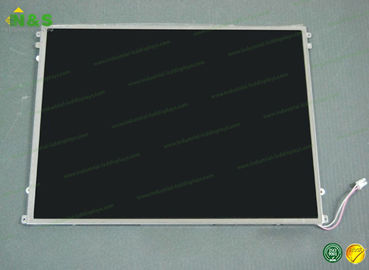

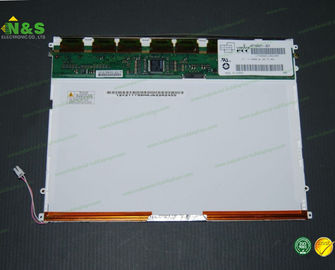

Normally Black HT12X21-221 BOE 12.1 inch with 245.76×184.32 mm Active Area Contrast Ratio 450:1 (Typ.)
HT12X21-221 Basic Information
| Panel Model | HT12X21-221 |
| Panel Brand | BOE HYDIS |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HT12X21-221 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 305g (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.4×189.0 mm (H×V) |
| Outline Dimension | 270×199 mm (H×V) |
| Outline Depth | 6.7±0.3 mm |
| Holes & Brackets | Face mounting holes (2-Φ2.0, 2-Φ2.2) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HT12X21-221 Optical Features
| Display Mode | AFFS, Normally Black, Transmissive |
| Brightness | 180 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 40 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.305; Wy:0.330 |
| White Variation | 1.40 (Max.)(5 points) |
| Sunlight Readable | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LSC320HN06 | Samsung | 31.5" | 1920×1080 |
| BF050FHME101 | BOE | 5.0" | 1080×1920 |
| BS055FHG-N41-6900 | BOE | 5.5" | 1080×1920 |
| CLAF050LQ41 TXX | CPT | 5.0" | 540×960 |
| HSD101PUW1-A00-0299 | HannStar | 10.1" | 1920×1200 |
| ST3151A04-9 | CSOT | 31.5" | 1366×768 |
| TM046XYHP02 | Tianma | 4.7" | 540×960 |
| C035SN72-0 | IVO | 3.5" | 320×480 |
| BF039WVE-800 | BOE | 3.9" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
HT12X21-221 Backlight System
| Lamp Position | Edge light type (Bottom side) |
| Lamp Type | CCFL |
| Lamp Amount | 1 pcs |
| Lamp Shape | Straight |
| Lamp Life Time | 10K(Min.) (Hours) |
| Lamp Voltage | 600V (Typ.) |
| Lamp Current | 2.0/5.0/6.0mA (Min./Typ./Max.) |
| Lamp Operating Frequency | 30/60/80KHz (Min./Typ./Max.) |
| Lamp Startup Voltage | 950/1150V (Max.)(Ta=+25/0℃) |
| Lamps Power Consumption | 3.0W (Typ.) |
| Interface Type | Connector |
| Lamp Driver Board | No |
