उत्पाद विवरण:
|
| पैनल मॉडल: | LT104AC36100 | पैनल प्रकार: | एलटीपीएस टीएफटी-एलसीडी |
|---|---|---|---|
| पैनल का आकार: | 10.4 इंच | संकल्प: | 1024 × 768 |
| बाह्य रेखा: | 242 × 185 मिमी | इसके विपरीत अनुपात: | 400: 1 (टाइप।) |
| हाई लाइट: | industrial lcd screen,industrial lcd panel |
||

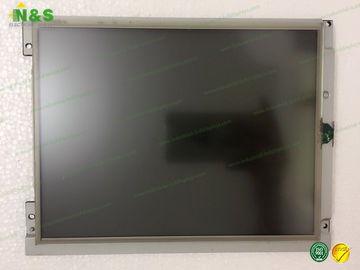

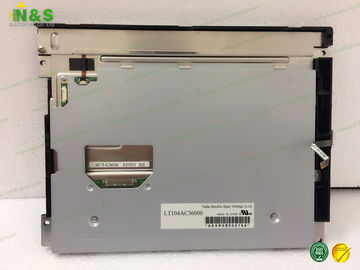

10.4 inch LT104AC36100 Active Area 210.432×157.824 mm resolution 1024×768 Contrast Ratio 400:1 (Typ.)
LT104AC36100 Basic Information
| Panel Model | LT104AC36100 |
| Panel Brand | Toshiba Matsushita |
| Descrition | LTPS TFT-LCD ,10.4 inch, 1024×768 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | Mounting compatible with LTA104D182F series. |
LT104AC36100 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 123 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch | 0.2055×0.2055 mm (H×V) |
| Weight | 600g (Typ.) |
| Active Area | 210.432×157.824 mm (H×V) |
| Bezel Area | 215.1×163.7 mm (H×V) |
| Outline Dimension | 242×185 mm (H×V) |
| Outline Depth | 13.4 (Typ.) mm |
| Holes & Brackets | Face mounting holes (2-Φ3.4, 2-3.4×4.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LT104AC36100 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD055BHW3-D00 | HannStar | 5.5" | 720×1280 |
| H546TAN01.4 | AUO | 5.5" | 720×1280 |
| LSC480AN02 | Samsung | 48" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LC550DUK-SGK2 | LG Display | 55" | 1920×1080 |
| LH400WV8-SH01 | LG Display | 4.0" | 480×800 |
| TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
| CLAN089WA02 XN | CPT | 8.9" | 800×1280 |
| LSF650FJ02 | Samsung | 65" | 3840×2160 |
| ST5461B05-2 | CSOT | 55" | 1920×1080 |
