उत्पाद विवरण:
|
| सक्रिय क्षेत्र: | 337.92 × 270.336 मिमी | बाह्य रेखा: | 358 × 296.5 × 17.4 मिमी |
|---|---|---|---|
| पैनल का आकार: | 17.0 इंच | संकल्प: | 1280 × 1024 |
| इसके विपरीत अनुपात: | 800: 1 (टाइप।) | आवृत्ति: | 60 हर्ट्ज |
| हाई लाइट: | industrial touch screen display,industrial lcd panel |
||
Normally White AA170EB01 resolution 1280×1024 Active Area 337.92×270.336 mm Surface Antiglare, Hard coating (3H)
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TV070WSU-N40 | BOE | 7.0" | 600×1024 |
| LS320PUWTH | PANDA | 31.5" | 1366×768 |
| TT4851D01-4 | CSOT | 49" | 3840×2160 |
| ST4761B01-6 | CSOT | 48" | 1920×1080 |
| LC420EGY-SGM1 | LG Display | 42" | 3840×2160 |
| H466TAN01.4 | AUO | 4.7" | 720×1280 |
| BF045WVE-400 | BOE | 4.5" | 480×854 |
| LC430DUY-SHA1 | LG Display | 43" | 1920×1080 |
| HSD047BMW1-D00 | HannStar | 4.7" | 540×960 |
| HSD070FMW1-A00 | HannStar | 7.0" | 540×960 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk

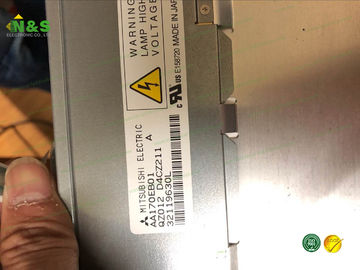

AA170EB01 Basic Information
| Panel Model | AA170EB01 |
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,17.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-55535D170J-FW-A-AAN |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| Remarks | NCM |
AA170EB01 Mechanical Features
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 1.84Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 337.92×270.336 mm (H×V) |
| Bezel Area | 341.6×274.0 mm (H×V) |
| Outline Dimension | 358×296.5 mm (H×V) |
| Outline Depth | 16.9 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AA170EB01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 550 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
