उत्पाद विवरण:
|
| संकल्प: | 800 × 480 | पैनल का आकार: | 6.1 इंच |
|---|---|---|---|
| सक्रिय क्षेत्र: | 136.2 × 72 मिमी | बाह्य रेखा: | 14 9 × 82.9 × 5.2 मिमी |
| इसके विपरीत अनुपात: | 400: 1 (टाइप।) | प्रतिक्रिया समय: | 20 (टाइप।) (ट्र + टीडी) |
| हाई लाइट: | industrial lcd screen,industrial lcd panel |
||

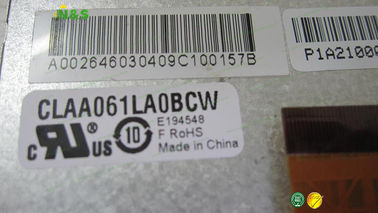

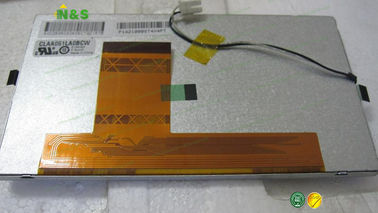

Normally White CLAA061LA0BCW TFT LCD Module 800×480 resolution Active Area 136.2×72 mm Frequency 60Hz
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LJ72 | CPT | 4.5" | 480×854 |
| CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
| CLAD015GC41 AX | CPT | 1.5" | 240×240 |
| CLAA090WK05XN | CPT | 9.0" | 1280×720 |
| CLAC080XA12LW | CPT | 8.0" | 1024×768 |
| CLAD015GB01 AX | CPT | 1.5" | 240×240 |
| CLAG045LG71 XX | CPT | 4.5" | 480×854 |
| CLAG045LH41 AXXA | CPT | 4.5" | 480×854 |
| CLAF020GC21A0 | CPT | 2.0" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
CLAA061LA0BCW Basic Information
| Panel Model | CLAA061LA0BCW |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,6.1 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
CLAA061LA0BCW Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 153 PPI |
| Aspect Ratio | 17:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05675×0.15 mm (H×V) |
| Pixel Pitch | 0.17025×0.15 mm (H×V) |
| Weight | 110g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 136.2×72 mm (H×V) |
| Bezel Area | 138.3×74.0 mm (H×V) |
| Outline Dimension | 149×82.9 mm (H×V) |
| Outline Depth | 5.0/5.2 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA061LA0BCW Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 70% NTSC (CIE1931) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Typ.)(9 points) |
| Sunlight Readable | N |
