उत्पाद विवरण:
|
| पैनल प्रकार: | ए-सी टीएफटी-एलसीडी | सतह: | चमक (धुंध 0%) |
|---|---|---|---|
| इसके विपरीत अनुपात: | 500: 1 (typ।) | पैनल का आकार: | 15.6 इंच |
| संकल्प: | 1366 × 768 | ||
| हाई लाइट: | industrial lcd screen,industrial lcd panel |
||

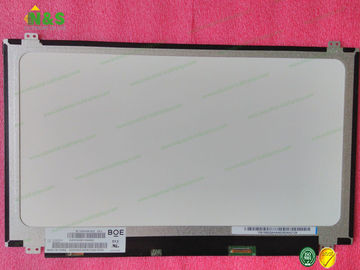

NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz
NT156WHM-N32 Basic Information
| Panel Model | NT156WHM-N32 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
NT156WHM-N32 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 370g (Max.) |
| Surface | Glare (Haze 0%) |
| Active Area | 344.232×193.536 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.8 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
| HR270QH3-100 | BOE | 27.0" | 2560×1440 |
| BF045WVQ-401 | BOE | 4.5" | 480×854 |
| BV055HDE-N40 | BOE | 5.5" | 720×1280 |
| TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
| AV080WVB-NW2 | BOE | 8.0" | 800×480 |
| BV050HDE-N47 | BOE | 5.0" | 720×1280 |
| BP096WX2-100 | BOE | 9.6" | 800×1280 |
| HV320WHB-N82 | BOE | 31.5" | 1366×768 |
| HV550QUB-B05 | BOE | 55" | 3840×2160 |
| BV047SQE-N40 | BOE | 4.7" | 540×960 |
