उत्पाद विवरण:
|
| पैनल प्रकार: | ए-सी टीएफटी-एलसीडी | इसके विपरीत अनुपात: | 450: 1 (टाइप।) |
|---|---|---|---|
| पैनल का आकार: | 15.0 इंच | संकल्प: | 1024 × 768 |
| इनपुट वोल्टेज: | 3.3V (टाइप।) | ||
| हाई लाइट: | industrial lcd screen,industrial lcd panel |
||

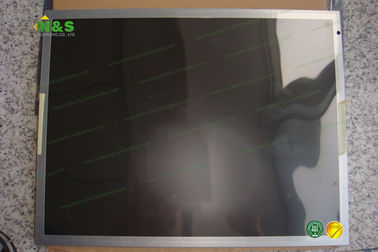

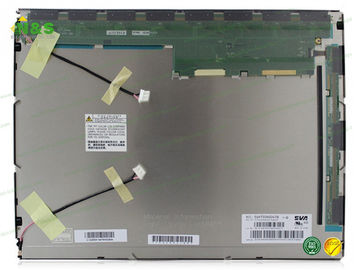

Normally White Transmissive 15.0 inch SVA150XG04TB SVA-NEC for Industrial Application panel Contrast Ratio 450:1 (Typ.)
SVA150XG04TB Basic Information
| Panel Model | SVA150XG04TB |
| Panel Brand | SVA-NEC |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | PSWG Compatible |
SVA150XG04TB Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.00Kgs (Typ.) |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 11.2/12.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
SVA150XG04TB Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 3/9 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.20/1.30 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F060A09-604 | Innolux | 6.0" | 720×1280 |
| LH470WX3-SH02 | LG Display | 4.7" | 720×1280 |
| LH600WX1-SH01 | LG Display | 6.0" | 720×1280 |
| H426TAN02.0 | AUO | 4.3" | 720×1280 |
| LC490EQJ-SGK1 | LG Display | 49" | 3840×2160 |
| LC420EQJ-SGE2 | LG Display | 42" | 3840×2160 |
| LC650EQK-FGK5 | LG Display | 65" | 3840×2160 |
| CLAG080WQ05 AX | CPT | 8.0" | 800×1280 |
| TT070WSQ-N10 | BOE | 7.0" | 1024×600 |
| C097SNX1 R1 | IVO | 9.7" | 1024×768 |
