उत्पाद विवरण:
|
| पैनल प्रकार: | ए-सी टीएफटी-एलसीडी | पैनल का आकार: | 10.1 इंच |
|---|---|---|---|
| संकल्प: | 1024 × 600 | बाह्य रेखा: | 235 × 143 × 5.2 मिमी |
| इसके विपरीत अनुपात: | 500: 1 (typ।) | इनपुट वोल्टेज: | 3.3V (टाइप।) |
| हाई लाइट: | industrial touch screen display,industrial lcd panel |
||

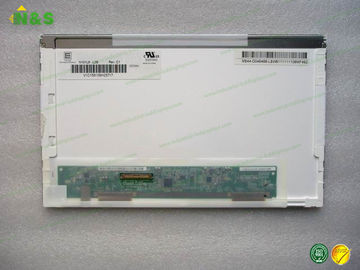

Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original
N101L6-L0B Basic Information
| Panel Model | N101L6-L0B |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N101L6-L0B Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 180/190g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 226.34×128.1 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 4.9/5.2 (Typ./Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M215HJJ-P02 | Innolux | 21.5" | 1920×1080 |
| M200HJJ-P01 | Innolux | 19.5" | 1920×1080 |
| HSD050FHW3-D00-T00 | HannStar | 5.0" | 720×1280 |
| S57001A112G56C1T5 | Laibao | 5.7" | 480×320 |
| TPF0501008P | JDI | 5.0" | 720×1280 |
| TL050JYXP02-00 | Tianma | 5.0" | 720×1280 |
| N156BGE-PA1 | Innolux | 15.6" | 1366×768 |
| T430HVN01.0 CELL | AUO | 43" | 1920×1080 |
| T320HVN05.6 CELL | AUO | 31.5" | 1920×1080 |
